Specifications

  • Dimensions
    add remove
    • Length:
      94.9 in
    • Overall width:
      36.6 in
    • Overall height:
      50.0 in
    • Seat height, unladen:
      26.5 in
    • Rake (steering head):
      30
    • Trail:
      5.8 in
    • Wheelbase:
      64.2 in
    • Tires, front specifications:
      130/90B16,73H,BW
    • Tires, rear specifications:
      150/80B16,77H,BW
    • Fuel Capacity:
      4.2 gal
    • Weight, as shipped:
      657 lbs
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117 Classic
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117 cu in
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      120.2 ft-lb
    • Engine torque (RPM):
      2,500
    • Horsepower:
      98 HP / 73 kW @ 4600 rpm
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      47 mpg (5 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
    • Final drive:
      Belt, 32/66 ratio
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; cam-style preload adjustment
    • Wheels, front type:
      Black Tubeless Laced w/ 36 Bright Spokes
    • Wheels, rear type:
      Black Tubeless Laced w/ 36 Bright Spokes
    • Brakes, type:
      Solid, uniform expansion rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
  • Electric
    add remove
    • Lights (as per country regulation), Headlamp:
      All LED, low beam, high beam and signature position lamp
    • Lights (as per country regulation), Tail/Stop:
      LED Buffett tail lamp
    • Lights, front signal lights:
      LED Bullet Turn Signals
    • Lights, rear turn signals:
      LED bullet light bar
    • Gauges:
      5-inch (127 mm) analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
    • Battery:
      Sealed, maintenance-free, absorbed glass mat (AGM) battery, 12V, 17.5Ah, 310 CCA at 0°F
    • Charging:
      Three-phase, 48 Amp system (364 Watts @13 Volts, 900 rpm, 624 Watts max power @ 13 Volts, 2000 rpm)
    • Starting:
      1.6 kW electric with solenoid shift starter motor engagement
    • Auxiliary lamps:
      LED fog
    • Electric power outlet:
      USB C-Type , Output 5V at 2.4 Amp

Request Details

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing excludes applicable taxes, title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing listed does include all documentary fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details. Dealer reserves right to correct any pricing error prior to final sale.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

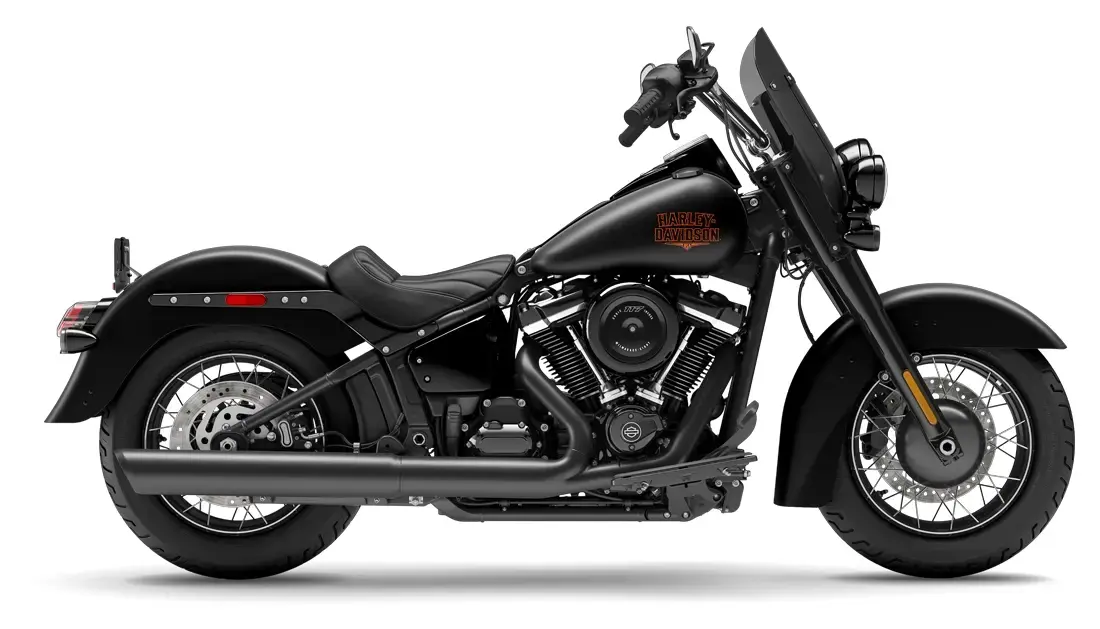

FLHD 2026 Deadwood™
