From city slab to backcountry rock, the Pan America 1250 Special delivers 150 hp of adaptable power at the flick of the throttle, in a package that weighs less than 570 lbs. With Adaptive Ride Height, Rider Safety Enhancements, and a 173 mm touchscreen display all standard, it’s packed with tech and built to take you wherever you want to go, even if the road doesn’t.

Specifications

  • Dimensions
    add remove
    • Length:
      89.4 in
    • Ground clearance:
      6.9 in
    • Rake (steering head):
      25
    • Trail:
      4.3 in
    • Wheelbase:
      62.4 in
    • Tires, front specifications:
      120/70R19 60V
    • Tires, rear specifications:
      170/60R17 72V
    • Fuel Capacity:
      4.7 gal
    • Oil capacity:
      4.75 qt.
    • Weight, as shipped:
      542 lbs
    • Weight, in running order:
      578 lb
  • Engine
    add remove
    • Engine:
      Revolution® Max 1250
    • Bore:
      4.1 in
    • Stroke:
      2.8 in
    • Displacement:
      76.40 in3
    • Compression ratio:
      13.0:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-1-into-1; catalyst in header
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      91.5 ft-lb
    • Engine torque (RPM):
      6750
    • Lean angle, right (deg.):
      42
    • Lean angle, left (deg.):
      42
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      46 mpg (5.1 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Gear, 49/89 ratio
    • Gear ratios (overall) 1st:
      13.11
    • Gear ratios (overall) 2nd:
      9.687
    • Gear ratios (overall) 3rd:
      7.509
    • Gear ratios (overall) 4th:
      6.057
    • Gear ratios (overall) 5th:
      5.08
    • Gear Ratios (overall) 6th:
      4.436
  • Chassis
    add remove
    • Front fork:
      47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
    • Rear shocks:
      Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
    • Wheels, optional style type:
      Annodized aluminum tubeless laced
    • Wheels, front type:
      Aluminum cast, satin black
    • Wheels, rear type:
      Aluminum cast, satin black
    • Brakes, type:
      Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
    • Brakes, caliper type:
      Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
  • Infotainment
    add remove
    • Type:
      Color TFT w/ Touch
    • Headset specifications (if equipped):
      Bluetooth
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice Recognition Languages: Phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Phone dependent
    • Rider / passenger intercom:
      Headset function only
    • Vehicle information screen:
      TPMS, Engine temp, Battery Voltage, Ambient Air Temp
    • USB:
      Charging and Instrument update, USB-C, 5V, 3A
    • Bluetooth:
      Phone/Media Supported

Request Details

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing excludes applicable taxes, title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing listed does include all documentary fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details. Dealer reserves right to correct any pricing error prior to final sale.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

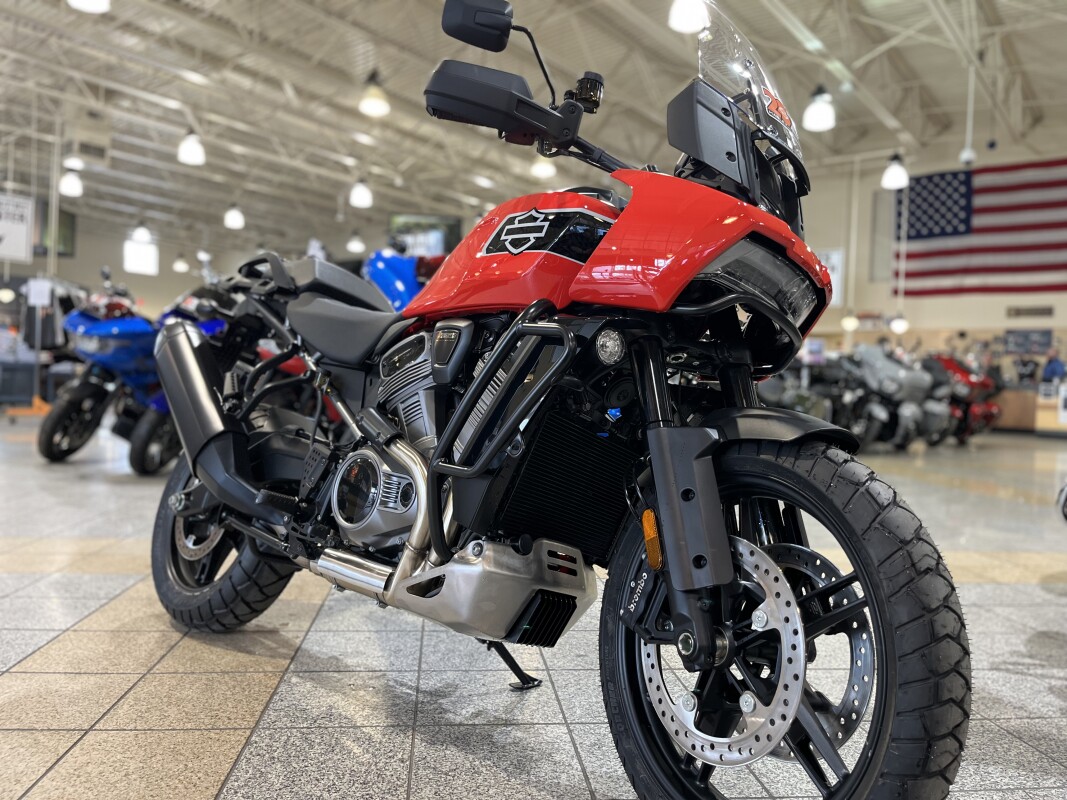

RA1250S 2026 Pan America® 1250 Special
