The iconic batwing fairing takes on new life with a sculpted silhouette, fully integrated LED lighting, and a split-stream vent opening. Using computational fluid dynamics (CFD), the Street Glide fairing has been designed to optimize aerodynamic efficiency and enhance rider comfort.

Specifications

  • Dimensions
    add remove
    • Length:
      94.9 in
    • Seat height, unladen:
      28.1 in
    • Rake (steering head):
      26
    • Trail:
      6.7 in
    • Wheelbase:
      64.0 in
    • Tires, front specifications:
      130/60B19 61H
    • Tires, rear specifications:
      BW 180/55B18 80H
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5.2 qt.
    • Weight, as shipped:
      774 lbs
    • Weight, in running order:
      811 lb
    • Luggage capacity – volume:
      2.3 cu ft (0.064 m3)
    • Tire, type:
      Dunlop® Harley-Davidson Series, bias blackwall front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight® 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.3:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      Chrome, 2-1-2 dual exhaust with tapered mufflers
  • Performance
    add remove
    • Engine torque testing method:
      J1349
    • Engine torque:
      129.8 ft-lb
    • Engine torque (RPM):
      3,250
    • Lean angle, right (deg.):
      31
    • Lean angle, left (deg.):
      29
    • Fuel economy testing method:
      Estimated City/Hwy
    • Fuel economy:
      44 mpg (5.3 l/100 km)
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.593
    • Gear ratios (overall) 2nd:
      6.65
    • Gear ratios (overall) 3rd:
      4.938
    • Gear ratios (overall) 4th:
      4
    • Gear ratios (overall) 5th:
      3.407
    • Gear Ratios (overall) 6th:
      2.875
  • Chassis
    add remove
    • Front fork:
      49mm Dual Bending Valve
    • Rear shocks:
      3 in. Dual Outboard Emulsion with Preload Adjustability
    • Wheels, front type:
      Cast aluminum
    • Wheels, rear type:
      Cast aluminum
    • Brakes, type:
      Dual floating rotors (front), fixed rotor (rear)
    • Brakes, caliper type:
      1.3 in., 4-piston fixed dual axially mounted front, and single axially mounted rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      LED headlamp, tail/stop, front signal lights and rear turn signals
    • Gauges:
      Digital gauges integrated within the display
  • Infotainment
    add remove
    • Screen size:
      12.3 in
    • Infotainment system:
      Skyline™ OS
    • Type:
      Full Color TFT
    • Watts per channel:
      50
    • Speakers:
      2
    • Speaker size:
      Two 5.25 in. fairing speakers
    • Headset specifications (if equipped):
      Harley-Davidson Packtalk Edge wireless Bluetooth® headset
    • AM:
      Standard
    • FM:
      Standard
    • SD Card, Flash Drive and MP3 — via USB Connection:
      Supported
    • Languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Hands-free mobile phone — via Bluetooth:
      Standard
    • Voice recognition: phone functions only:
      Phone dependent
    • Voice Recognition Languages: Tuner / Media / Navigation:
      Phone dependent
    • Text-to-Speech (TTS) languages:
      Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese
    • Rider / passenger intercom:
      Standard (passenger headset sold separately), VOX is available for HD headsets
    • Vehicle information screen:
      Standard
    • USB:
      USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage.
    • Bluetooth:
      Phone/Media Player, Headset

Request Details

Required
Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Disclaimer:

Price

Advertised pricing is out the door pricing inclusive of all dealer fees. Pricing listed is exclusive of sales tax and government fees. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.

Vehicle Information

While every effort has been made to ensure display of accurate data, including pricing data, the vehicle listings on this website may not reflect all accurate vehicle items. Accessories and color may vary. All Inventory listed is subject to prior sale. The vehicle photo displayed may be an example only. Vehicle Photos may not match exact vehicle. Please confirm vehicle price with dealer. All materials on this site are presented to the user "as is" without warranty of any kind, either express or implied.

Vehicle Availability

Vehicles shown on this site may not currently be in dealer's inventory. Additionally, vehicles shown may be in the inventory of a partner dealership or a dealership with shared ownership. If this is the case, this vehicle is not in our inventory but can be made available to you at dealer's location within a reasonable time.

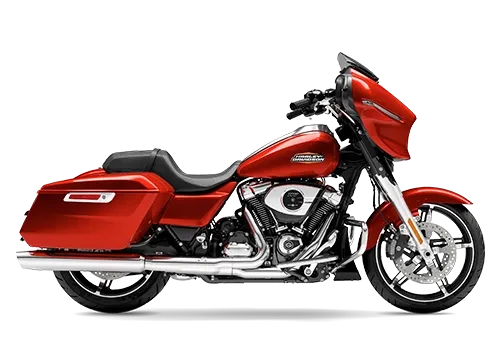

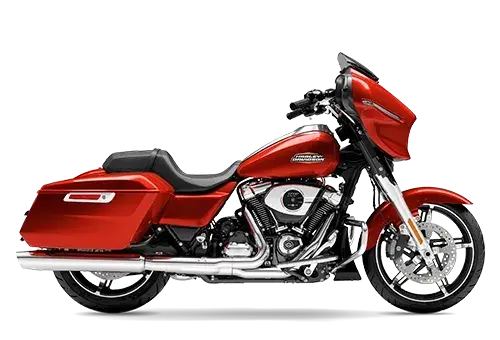

FLHX 2024 Street Glide®

606508A
1HD1KB716RB606508
Harley-Davidson®
Grand American Touring
Pre-owned
2024
19 mi
SLV
Laconia Harley-Davidson

603.279.4526
